Storage

Kubernetes orchestrator offers several ways to utilize infrastructure storages. There are three important Kubernetes objects related to storage: Storage Class, Physical Volume (PV), Persistent Volume Claim (PVC).

Storage Class

Storage class provides a way for administrators to describe the “classes” of storage they offer. We differentiate between static and dynamic classes. Static class means that storage representation in Kubernetes (PV+PVC) must be created in advance by administrator or some controller to be used by Pod. Dynamic class means that volumes can be created on demand, as user requests them, usually via creating PVC.

Different classes might map to quality-of-service levels.

We offer the following storage classes:

  1. nfs-csi — default dynamic class that uses NFS as connection protocol.

    • While this class works as a database storage backend, users are encouraged to use the zfs-csi class for databases.

    • Administrators can create a static PVC in advance, which is particularly useful when the volume will be accessed by a group of users over an extended period.

    • This storage class is backed by an all-flash storage array, providing high performance. However, performance may be constrained by the 10 Gbps link between the cluster and the storage system. Under heavy load, this can result in noticeable lag.

    • We can restore accidentally deleted files up to one week back, with day-level granularity. This means files created and deleted within the same day cannot be recovered.

      The storage has no additional redundancy. In the event of a catastrophic failure of the storage array, all data will be permanently lost with no possibility of recovery.

  2. nfs-csi-backup — Dynamic storage class using NFS as the connection protocol.

    • This class is functionally the same as nfs-csi, but includes regular, system-level data backups to a separate physical location.
    • Data is retained for 30 days.
    • Data recovery is available upon request; users cannot perform recovery autonomously.

  3. beegfs-csi — High-performance shared storage accessible from all nodes that support BeeGFS.

    • Tied to Quality of Service: All physical nodes contributing to the beegfs pool must be operational for any BeeGFS-based PVC to function. If a single node in this pool experiences hardware failure (CPU, memory, motherboard, etc.), all BeeGFS PVCs become non-functional, regardless of which node they were created on.
    • Currently, this includes all kub-b nodes. However, BeeGFS is mounted and available across both kub-b and kub-c nodes.
    • Ideal when ultra-fast shared storage is required — up to 10× faster than NFS.
    • No backups or additional redundancy.
    • Tolerates failure of one disk per node, but no additional redundancy is present.
    • Accidentally deleted files cannot be recovered.

  4. zfs-csi — High-performance local storage accessible only from the node where it is provisioned.

    • Tied to Quality of Service: The PVC is available only if the physical node hosting it is fully operational.
    • Offers lower latency and better performance, especially when data access is mostly non-parallel.
    • Ideal for databases or workloads involving large numbers of files, provided that parallel access across multiple nodes is not required.
    • Strongly recommended to use database replicas to avoid a single point of failure.
    • Tolerates failure of one disk per node, but a full node failure will render the PVC inaccessible.
    • No backups or data recovery options are available.

  5. s3-csi — Dynamic storage class that provisions a PVC representing your S3 bucket.

    • Useful when you need to interactively work with data stored in an S3 bucket, or if your application cannot natively use an S3 backend.
    • Requires a two-step deployment process — detailed instructions are provided in a later subsection.
    • Redundancy and data protection are determined by the underlying S3 storage provider.

  6. sshfs — Storage class that uses the SSH protocol to connect to a remote node (not necessarily a storage node) and mount a file system.

    • Useful for mounting data stored on MetaCentrum storage.
    • Requires coordination with system administrators — setup steps are described in a later subsection.
    • Since the file system is emulated over an SSH connection, performance is limited.

  7. Ephemeral storage — Fast local storage allocated from a node’s disk or memory.

    • Tied to Quality of Service: If the Pod using this storage is moved to a different physical node, all data is lost.
    • Useful for caching purposes — setup steps are described in a later subsection.
    • If a larger amount of local storage is needed, users are encouraged to declare it as ephemeral storage and request the appropriate resources. This allows the scheduler to coordinate Pod placement with respect to node storage capacity.
    • Unlike using the /tmp directory, ephemeral storage can be shared among containers within the same Pod (e.g., sidecars).
    • Ephemeral storage cannot be shared between different Pods, even if they run on the same node.
    • There is no additional data protection.

  8. cvmfs — Specialized storage class for mounting software repositories, such as those from CERN or MetaCentrum.

    • Requires coordination with system administrators.
    • Please send your request via email to: k8s@cerit-sc.cz

Persistent Volume (PV)

PV represents physical volume that is responsible for storage connection. Only administrator can create PV and it is cluster wide resource (not namespaced).

Persistent Volume Claim (PVC)

The PVC is an object that represents persistent storage in Kubernetes. This object can be mounted into a pod. PVCs can be restricted to only one Pod or can be mounted to many pods simultaneously thus making it a shared storage among pods.

  • User can create an ad-hoc PVC of nfs-csi storage class using pvc.yaml template. Download it, fill in name and storage size and issue command:
kubectl create -f pvc.yaml -n [namespace]

where namespace is user namespace as can be seen in Rancher GUI, usually surname-ns. Such newly created PVC does not contain any data, the user needs to populate the data on his/her own. PVC name is the exactly the same you fill in the name value. User can choose different storage class according to description above.

  • Another option is to request admins to create special PVC according to your needs, e.g. PV will point to specific folder on a storage server. You can request it at k8s@cerit-sc.cz.

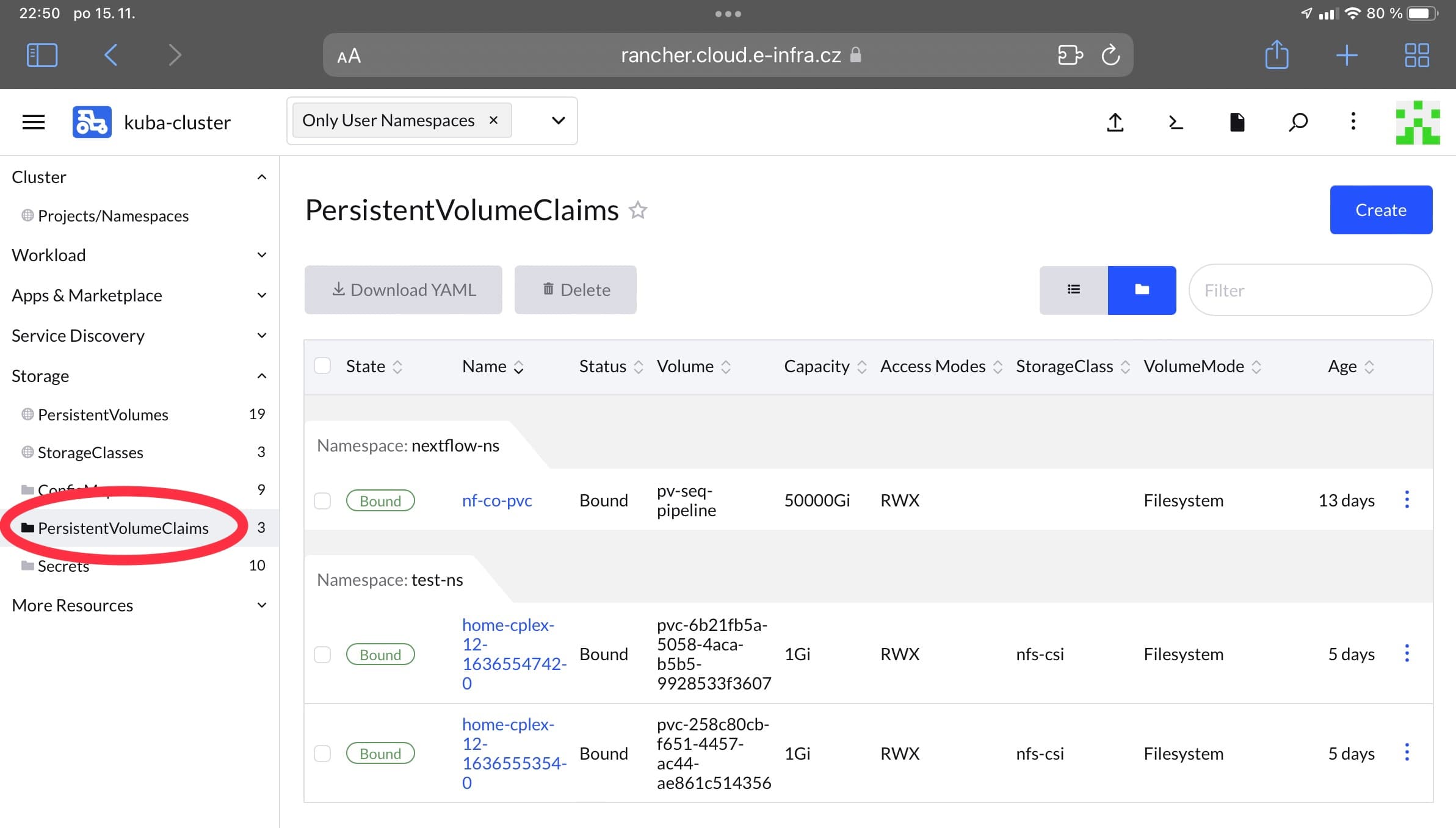

You see your PVCs in Rancher GUI in Storage → PersistentVolumeClaims Volumes or use kubectl

kubectl get pvc -n [namespace]

Tutorials

This section provides tutorials on how to create PVC of each storage class. Every yaml snippet can be saved into a file and then created as kubectl create -f [that yaml] -n [your namespace]. You can always check if PVC has been created by issuing kubectl get pvc -n [your namespace] and looking for PVC’s name. If PVC is in Pending state for too long, there might be some problem. Normally, you should see in few moments PVC in Bound state.

NFS

It is important to configure metadata.name,resources.requests.storage and if necessary, spec.accessModes. It is necessary to deploy to namespace.

kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: test-pvc
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 2Gi
  storageClassName: nfs-csi

beegfs-csi

It is important to configure metadata.name,resources.requests.storage and if necessary, spec.accessModes. It is necessary to deploy to namespace.

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: test-pvc-beegfs
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 1000Gi
  storageClassName: "beegfs-csi"

zfs-csi

It is important to configure metadata.name,resources.requests.storage and if necessary, spec.accessModes. It is necessary to deploy to namespace.

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: test-pvc-zfs
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 20Gi
  storageClassName: "zfs-csi"

s3-csi

You need S3 endpoint, bucket, access key and secret key.

☝

Current limitations

If you don’t have any S3 bucket, you can create one at s3-ui.cloud.e-infra.cz.

  • Allowed bucket names are [your-einfra-login] or [your-einfra-login]-*, e.g. viktorias-test
  • Endpoint name in the secret will be https://s3.cloud.e-infra.cz

First, create a secret in a namespace with some name [secret-name]. The secret must have the following format.

apiVersion: v1
kind: Secret
metadata:
  name: [secret-name]
spec:
  accessKeyID: [your-access-key-id]
  secretAccessKey: [your-secret-key]
  endpoint: [endpoint]
  bucket: [bucket]

Then create PVC which must have the same name as the secret therefore in metadata.name use secret’s name.

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: [secret-name]
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 5Gi
  storageClassName: s3-csi

sshfs

This demonstrates how to make your MetaCentrum home available as PVC in Kubernetes.

First, you need to create ssh keypair

ssh-keygen -b 4096 -t rsa -f ~/.ssh/custom_key

This command will generate public key into ~/.ssh/custom_key.pub and private key into ~/.ssh/custom_key. Create directory .ssh using mkdir -p $HOME/.ssh and copy the full contents of public key into your metacentrum home into file .ssh/authorized_keys.

Second, you need to create a ssh authentication secret in the namespace where you want to have your MetaCentrum available as PVC. The contents of secret is private part of ssh key located in ~/.ssh/custom_key. The secret must have the following form.

apiVersion: v1
kind: Secret
metadata:
  name: secret-ssh-auth
type: kubernetes.io/ssh-auth
data:
  # the data is abbreviated in this example
  ssh-privatekey: |
    [full contents of private part of ssh key]

As a last step, administrators must create PV (and PVC) for you. Please, email us at k8s@cerit-sc.cz and include information about your metacentrum username, which storage you want to mount, and the namespace in Kubernetes where you want to have the PVC and secret name.

Ephemeral Storage

Ephemeral storage is allocated from node’s local storage (disk or memory). Allocation is done through resource requests, see resources and through volume mounts. If a Pod is evicted or moved to another node, content of ephemeral storage is lost.

Ephemeral storage from local disk:

volumes:
- name: eph
  emptyDir:
    sizeLimit: 10Gi

volumeMounts:
- name: eph
  mountPath: /data

Ephemeral storage from local memory:

volumes:
- name: mem
  emptyDir:
    medium: Memory
    sizeLimit: 1Gi

volumeMounts:
- name: mem
  mountPath: /tmp

In case of local memory, see requirements on memory resources.
